YUASA BATTERY 12V 9A SPADE TYPE
Description

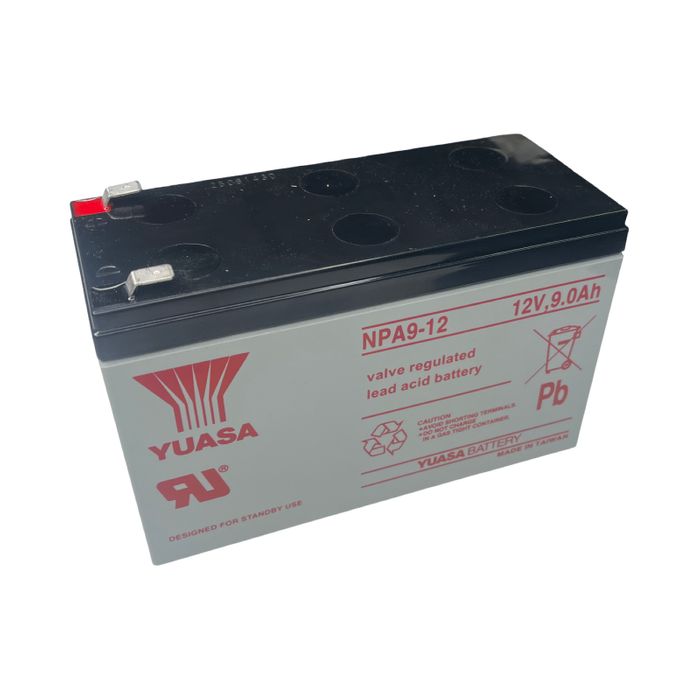

The Yuasa NPA9-12 is a 12V, 9Ah sealed lead-acid (VRLA AGM) battery with dimensions of 151 x 65 x 97.5 mm and a weight of 2.6 kg. It is a non-hazardous, non-spillable, multi-positional battery designed for high energy density and excellent cycling capability, suitable for various standby power applications. Technical Specifications: Model: NPA9-12 Nominal Voltage: 12V Capacity: 9Ah Construction: Valve Regulated Lead Acid (VRLA) / Absorbent Glass Mat (AGM) Dimensions (L x W x H): 151 mm x 65 mm x 97.5 mm (5.94" x 2.56" x 3.84") Weight: 2.6 kg (approx.) FEATURES Superb recovery from deep discharge. Electrolyte suspension system. Gas Recombination. Multipurpose: Float or Cyclic use. Usable in any orientation (except continuous inverted). Superior energy density. Lead calcium grids for extended life. Manufactured World wide. Application specific designs. Technical Features Sealed Construction Yuasas unique construction and sealing technique ensures no electrolyte leakage from case or terminals Electrolyte Suspension System All NP batteries utilize Yuasas unique electrolyte suspension system incorporating a microfine glass mat to retain the maximum amount of electrolyte in the cells. The electrolyte is retained in the separator material and there is no free electrolyte to escape from the cells. No gels or other contaminants are added. Control of Gas Generation The design of Yuasas NP batteries incorporates the very latest oxygen recombination technology to effectively control the generation of gas during normal use. Low Maintenance Operation Due to the perfectly sealed construction and the recombination of gasses within the cell, the battery is almost maintenance free. Terminals NP batteries are manufactured using a range of terminals which vary in size and type. Please refer to details as shown. Operation in any Orientation The combination of sealed construction and Yuasas unique electrolyte suspension system allows operation in any orientation, with no loss of performance or fear of electrolyte leakage. (Excluding continuous use inverted) Valve Regulated Design The batteries are equipped with a simple, safe low pressure venting system which releases excess gas and automatically reseals should there be a build up of gas within the battery due to severe overcharge. Note. On no account should the battery be charged in a sealed container.
